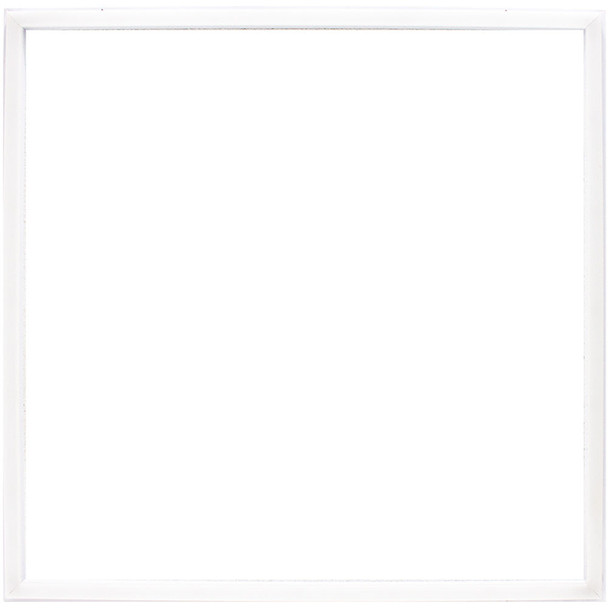

The Westgate TGL Series 2x2 RGB LED Frame Light is a modern, ultra-thin fixture designed to replace traditional 2x2 LED panels. With selectable color temperature, Bluetooth remote control, and high efficacy, this fixture is perfect for commercial spaces looking for flexibility and performance.

Key Features and Benefits

Selectable RGB color temperature for dynamic lighting effects
High output up to 6000 lumens with 40W adjustable power
Bluetooth remote control for easy adjustments
Ultra-thin, modern design for sleek installations
Continuous 0-10V dimming capability
High efficacy at 150 LPW for energy savings
Long 50,000-hour rated life reduces maintenance
Separate driver/junction box for flexible installation
Compatible with Google Assistant and Amazon Alexa
5-year warranty for peace of mind

Specifications

Wattage: 40W
Lumens: 6000lm
Voltage: 120-277V
Color Temperature: RGB
CRI: ≥80
Power Factor: >0.92
Rated Life: 50,000 hours
Dimensions: 23 3/4" x 23 3/4" x 5/8"
IP20 rated for indoor use

Common Uses

Ideal for offices, schools, healthcare facilities, retail spaces, conference rooms, hospitality areas, corridors, reception areas, foyers, and libraries.

Details

CRI:	80
Color Temperature:	RGB
Dimming Type:	Non-Dimming
Efficacy:	100LM/W
Finish / Color:	White
Housing Material:	Polycarbonate
IP Rating:	IP20
Item Height (Inch):	0.63
Item Length (Inch):	47.76
Item Weight (LBS):	2.1
Item Width (Inch):	23.7
L70 Expected Life (hours):	30000hr
LED Type:	2835
Lens Material:	FROSTED
Lumen Output:	4000
Operating Temperature:	-4°F ~ 113°F
Power Factor:	>0.95
Ships From:	CA
THD:	<20%
Voltage:	120-277V
Warranty (Years):	5
Wattage:	40W
