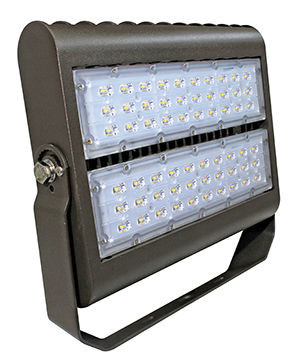

The Westgate LF4-80CW-TR is part of the LF4 Architectural Series LED Flood Light with Trunnion, engineered for reliable and efficient outdoor lighting. This robust 80W fixture delivers 9500 lumens at a crisp 5000K color temperature, making it an excellent choice for general site lighting, alleys, loading docks, pathways, and parking areas.

Key Features and Benefits

High-output 9500 lumen performance for bright, uniform illumination
Selectable 5000K daylight color temperature for enhanced visibility
Energy-efficient at 120 lm/W efficacy, reducing operational costs
Durable die-cast aluminum housing with a weather-resistant powder coat finish
Wide 90° x 120° beam angle for broad area coverage
0-10V dimmable for flexible lighting control
Long 50,000 hour rated lifespan for reduced maintenance
IP65 rated for wet locations and harsh environments
UL and DLC certified for safety and performance

Specifications

Wattage: 80W
Lumens: 9500lm
Voltage: 120-277VAC
Color Temperature: 5000K
CRI: >82
Dimensions: 8-1/2"(H) x 11-7/8"(W) x 4"(D)
Operating Temperature: -40°F to 104°F
Finish: Dark Bronze
Warranty: 5 years

Common Uses

Perfect for illuminating building perimeters, parking lots, loading docks, pathways, and other outdoor commercial or industrial spaces where reliable, high-output lighting is essential.

Details

Beam Angle:	120° x 90°
CRI:	80
Certifications:	DLC Standard, UL Listed
Color Temperature:	5000K
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	Bronze
Housing Material:	Aluminum
IP Rating:	IP65
Item Height (Inch):	4.09
Item Length (Inch):	10.98
Item Weight (LBS):	9.810570667227053
Item Width (Inch):	8.46
L70 Expected Life (hours):	70,000hr
LED Type:	Philips Lumileds Lexeon high ﬂux LED
Lens Material:	TIR optic lens - TYPE II
Lumen Output:	9500
Operating Temperature:	-4°F to 104°F
Power Factor:	.9~.97
Ships From:	CA
THD:	<20%
Voltage:	120-277V
Warranty (Years):	7
Wattage:	80W
