Description

Details

Description

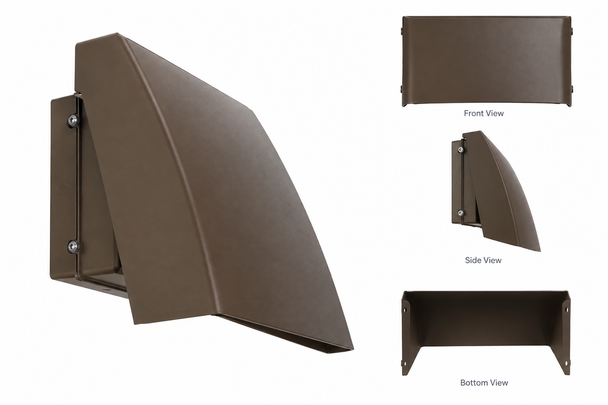

Discover the ultimate outdoor lighting solution with the LWAX MD Shroud LED Cutoff Wall Pack. This versatile lighting fixture is available in multiple wattages—50W, 80W, 100W, and 120W—offering an impressive maximum output of 15,000 lumens and multi color temperature options of 3000K, 4000K, 5000K, or 5700K. Designed to last, it boasts up to 70,000 hours of rated life and an IP65 rating, ensuring it performs reliably even in wet conditions. With a 7-year warranty, this wall pack promises longevity and peace of mind.

Perfect for a range of outside settings, it's ideal for general site lighting, alleys, loading docks, doorways, pathways, and parking areas. It’s also great for use with motion sensors or other instant on/off controls, enhancing its energy efficiency.

Key Features

High-transparency, anti-UV, fire-resistant polycarbonate lens
Four 1/2" knockouts: one on the top, each side, and back
Durable die-cast aluminum housing with dark bronze powder coat finish
Adjustable light head from 0° to 90° for optimal lighting
Full cutoff and dark sky compliant
7-year warranty
Internal switches for multi CCT and power settings

Electrical Details

Input voltage: 120-277V AC 60Hz
Wattage options include 50W, 80W, 100W, 120W
High power factor >0.95
Efficacy of 130 lumens per watt

Mechanical Features

High-transparency, anti-UV, shatterproof polycarbonate lens
Rugged die-cast aluminum housing with powder coat finish
Adjustable light head from 0° to 90° for directional lighting
Full cutoff and dark sky compliant
Four 1/2" knockouts: one on the top, each side, and back
IP65 rated for wet locations
7-year warranty

Lighting Characteristics

0~10V dimmable for customizable brightness
Multi CCT and power settings for versatility
Type II light distribution ideal for wide walkways, ramps, and entrance roadways
Up to 15,000 lumens
Color temperatures: 3000K, 4000K, 5000K, 5700K
Color rendering index (CRI) of ≥ 80
Beam angle of 80° x 100°
Long-lasting with a 70,000-hour rated life

Applications

General site lighting
Alleys
Loading docks
Doorways
Pathways
Parking areas

Details

CRI:	80
Color Temperature:	3000K\|4000K\|5000K
Country of Origin:	CHINA
Driver Type:	120-277V
Finish / Color:	Bronze
Housing Material:	Die-cast aluminum
L70 Expected Life (hours):	70000
Light Source:	LED
Lumen Output:	15000
Luminaire Efficacy Rating (LER):	130lm/W
Primary Material:	Die-cast aluminum
Ships From:	CA
Special Features:	Selectable Wattage
Warranty (Years):	7
Wattage:	50W\|80W\|100W\|120W
