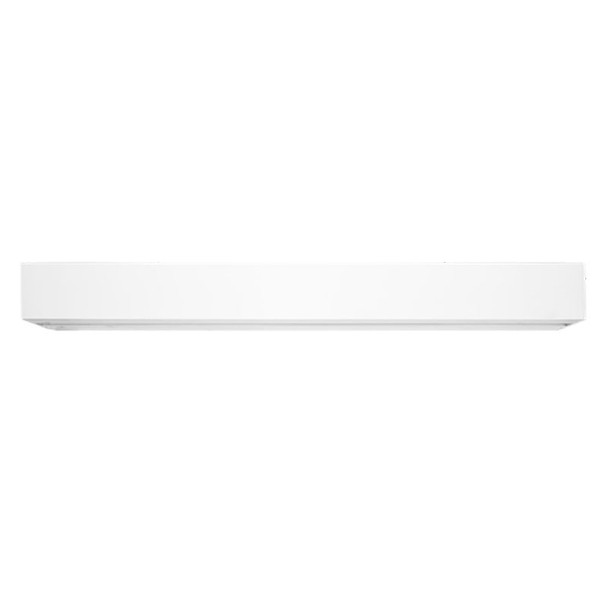

Innovative 3ft Linear Fixture from SCX4 Series

Discover excellence in lighting with the SCX4 Series 3ft Linear Fixture. Boasting 30 watts of power, it provides 3,387 to 3,604 lumens and features selectable color temperatures (3000K, 3500K, 4000K, and 5000K). The fixture is designed for longevity with a lifespan of up to 50,000 hours and is backed by a 5-year warranty.

Primary Features

Architecturally superior LED lights
Linkable linear lighting system
Direct lighting with opal polycarbonate lens
Optional kits for recessed and wall mounting available
Alternative louver version lens available
Selectable multi-color temperature inside the fixture

Electrical Characteristics

120-277VAC, 50/60Hz
30W power consumption
Power Factor: over 0.95
Lumen per watt: 108/119/111/113
Total Harmonic Distortion: ≤20%

Mechanical Details

Sleek and modern low-profile design
Aluminum housing with matte white finish
Availability in custom colors
Snap-in lens
Variety of mounting options: surface, suspended, wall, recessed
IP54 rating
Operational temperature: -13°F to 104°F

Lighting Details

Dimmable with 0-10V range
Light output: 3387LM/3638LM/3566LM/3604LM
CRI of 80 or more
Option for up lighting
Rated for 50,000 hours of use
Beam angle: 104.8° horizontal, 100.5° vertical

Application Scenarios

Perfect for office spaces, hotels, corridors, salons, libraries, meeting rooms, and conference halls
Suitable for various indoor settings

Details

CRI:	80
Certifications:	DLC Standard, UL Listed
Color Temperature:	3000K\|3500K\|4000K\|5000K
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP54
Item Height (Inch):	3.3464566929133857
Item Length (Inch):	35.70866141732284
Item Weight (LBS):	7
Item Width (Inch):	4
L70 Expected Life (hours):	50,000hr
LED Type:	LED
Lens Material:	Opal Polycarbonate
Lumen Output:	3300
Operating Temperature:	-13°F to 104°F
Power Factor:	>0.95
Ships From:	CA
Special Features:	Selectable CCT
Voltage:	120-277V
Warranty (Years):	5
Wattage:	30W
