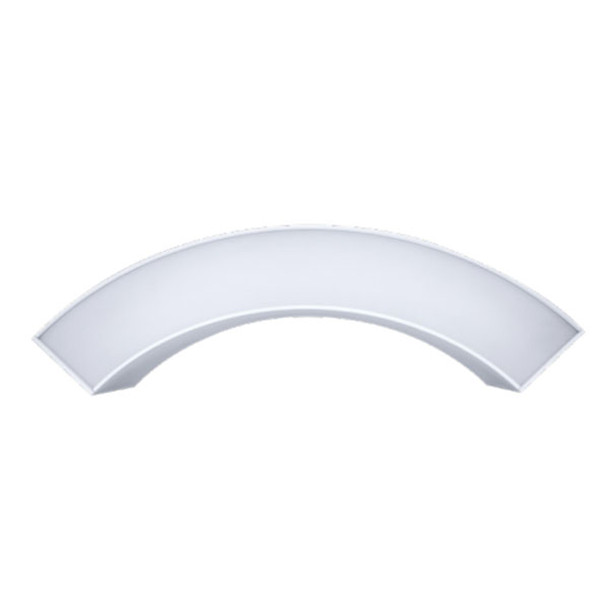

20W SCX Quarter of Circle Light Fixture - Multi CCT

Introducing the 20W SCX Quarter of Circle light fixture, your solution for adaptable and efficient indoor lighting. This fixture offers selectable color temperatures (3000K, 3500K, 4000K, 5000K) and an adjustable lumen output of 2200 lumens, making it ideal for a variety of settings including offices, hotels, and meeting rooms.

Features and Benefits

Select color temperatures from 3000K to 5000K to suit any ambiance
2200LM adjustable output for precise illumination
Efficiency of 110 lumens per watt (LPW) for energy savings
Long-lasting with a 50,000-hour lifespan
Dimming capability ranging from 0 to 10V for customizable lighting
Wide beam angles of 104.8° horizontal and 100.5° vertical
CRI ≥80 for true color representation
Convenient Multi-CCT switch inside the fixture for easy selection

Technical Details

Voltage: 120-277V AC 50/60Hz
Power Consumption: 20W
Power Factor: Greater than 0.9
THD: ≤20%
Protection Rating: IP54, resistant to dust and water splashes
Dimensions: 2 3/4" length x 3 1/3" width x 17 5/6" height
Operational Temperature: -22°F to +104°F, adaptable to extreme conditions
Comprehensive 5-year warranty

Applications

Versatile and stylish, this light fixture is ideal for installation in offices, hotels, corridors, libraries, salons, meeting rooms, conference halls, and other indoor environments requiring modern illumination.

Details

BUG Rating:	B1 U2 G1
Beam Angle:	H108.4 V107.3°
CRI:	80
Certifications:	UL Listed
Color Temperature:	3000K\|3500K\|4000K\|5000K
Country of Origin:	CHINA
Dimming Type:	0-10V
Finish / Color:	White
Housing Material:	Aluminum
IP Rating:	IP20
Item Height (Inch):	3.35
Item Length (Inch):	17.72
Item Weight (LBS):	4.4
Item Width (Inch):	2.76
L70 Expected Life (hours):	50,000hr
Lumen Output:	2200
Operating Temperature:	:-30 ~ 40 ℃(-22°F to +104°F)
Power Factor:	>0.9
Ships From:	CA
Special Features:	Selectable CCT
THD:	<19
Voltage:	120-277V
Warranty (Years):	5
Wattage:	20W
