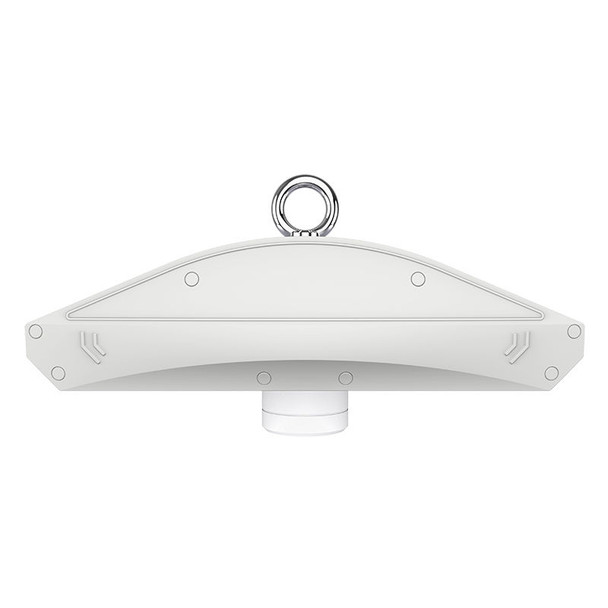

Advanced Linear NSF Food Highbay

Explore the cutting-edge features of the Advanced Linear NSF Food Highbay, engineered for top performance in food processing, commercial kitchens, pharmaceutical manufacturing, and other environments where hygiene is paramount. This fixture provides selectable wattage (120W/160W/200W) and adjustable color temperatures (3500K/4000K/5000K), offering up to 30,000 lumens of brightness. NSF certified and IP69 rated, it's built to withstand rigorous conditions.

Key Features and Benefits

Uses premium LED chips to ensure high efficiency, excellent heat dissipation, and dependable lumen maintenance.
Durable high flame retardant polycarbonate lens offers added safety.
Frosted lens reduces glare, providing a more comfortable visual experience.
Built to last with a 50,000-hour rating.
Includes a robust 5-year warranty.
Select between different wattages: 120W, 160W, 200W, for versatile lighting options.
Adjustable color temperatures: 3500K, 4000K, and 5000K to suit various requirements.
Achieves high efficacy of 150 lumens per watt (LPW).
NSF certified, making it compliant with food safety standards.
IP69 rating provides full protection against dust and high-pressure water jets.

Technical Specifications

Operates under a voltage range of 120~277VAC/50~60 Hz.
Produces up to 30,000 lumens of total light output.
Color Rendering Index (CRI): >80 for excellent light quality.
Available beam angles include: 15°, 25°, 40°, 60°, 90°, 120°, 30x15°, 49x21°, 136x78°.
Can operate within -22°F to 113°F to suit diverse environments.
Dimensions: 9.84"(H) x 21.91"(W) x 2.41"(D).
Includes suspension mount, hanging chains, and rings for easy installation.

Common Uses

Ideal for use in food processing facilities, cold storage, commercial kitchens, pharmaceutical manufacturing, clean rooms, and warehouses that must maintain hygiene standards.

Resources and Downloads

Linear NSF Food Highbay Spec Sheet

Details

Beam Angle:	120°
CRI:	80
Certifications:	UL Listed
Color Temperature:	4000K\|5000K\|4500K
Country of Origin:	VIETNAM
Dimming Type:	0-10V
Efficacy:	150LM/W
Finish / Color:	White
Housing Material:	Polycarbonate
Item Height (Inch):	2.716
Item Length (Inch):	21.89
Item Weight (LBS):	11.243
Item Width (Inch):	9.842
L70 Expected Life (hours):	50,000hr\|50000
LED Type:	Lumileds 3030
Lens Material:	optical PC lens
Lumen Output:	30000\|18000\|24000
Operating Temperature:	-30degree ~ +45degre
Power Factor:	0.9
Ships From:	CA
Special Features:	Selectable Wattage\|Selectable CCT\|Selectable Lumen Output\|Sensor Included\|NSF Rated
THD:	<20%
Voltage:	120-277V
Warranty (Years):	5
Wattage:	120W\|160W\|200W
