Versatile Outdoor Lighting with Adjustable Power and Temperature

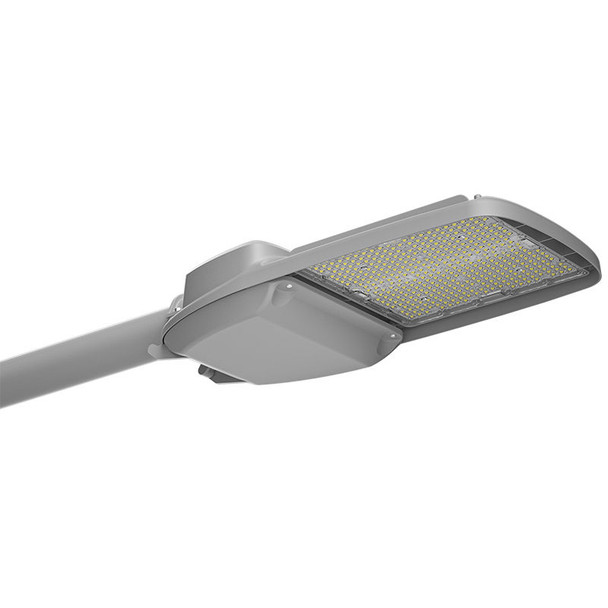

Brighten up your outdoor spaces with the WM-STL4-80-200W-40K lighting fixture. This state-of-the-art outdoor light allows you to choose between different wattages (80W, 100W, 150W, 200W) and color temperatures (3000K, 4000K, 5000K), delivering up to 28000 lumens for any application.

Primary Features and Advantages

• Adjustable Power: Easily switch power levels through the Multi-Power Switch located at the back
• Optical Efficiency: Features a TYPE III lens with high light transmittance, anti-UV, and flame resistant capabilities
• 0-10V Dimming: Allows for precise dimming control
• Superior Thermal Management: The driver is housed in an isolated compartment
• Robust Construction: Made from die-cast aluminum with a light grey powder coat finish
• Lightning Surge Protection: 10KV protection to safeguard the fixture
• Extended Warranty: Backed by a 7-year manufacturer warranty
• NEMA Twist-Lock Socket: Includes a shorting cap

Technical Specifications

• Voltage: 120-277V, 60Hz AC
• Power Factor: >0.95
• Wattage: 80-200W
• Efficacy: 140LM/W
• Total Lumens: 28000LM Max.
• Color Temperature: 4000K
• Color Rendering Index: CRI >= 70
• Rated Life: 70,000 hrs
• IP Rating: IP65, Suitable for Outdoor Use
• Max Ambient Temperature: 104°F
• Dimensions: 9 1/4"(H) x 23 1/4"(W) x 4 3/4"(D)
• Cord: 40” SJTW 18/3 AWG Cable

Applications

Perfect for diverse applications such as general site lighting, streets, roadways, alleys, loading docks, doorways, pathways, and parking areas. This fixture ensures optimal lighting and safety in various outdoor settings.
