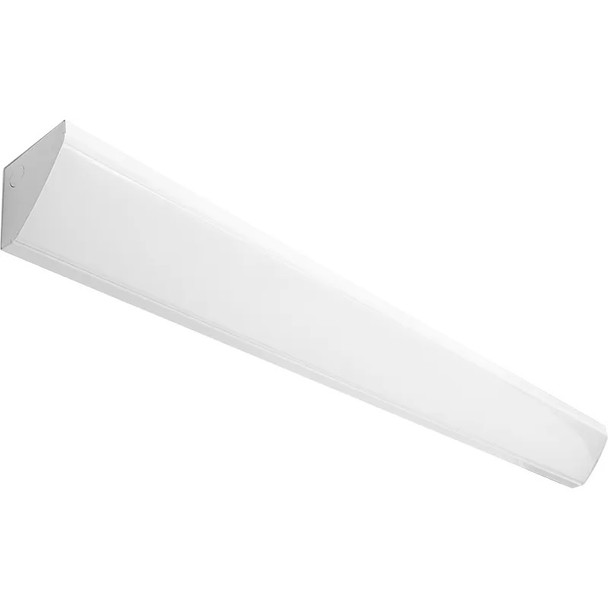

4Ft Adjustable Linear Corner Light with Bi-Level Sensor and Emergency Backup

This 4-foot linear corner corridor light offers both selectable color temperature (3500K, 4000K, 5000K) and adjustable lumen outputs (2300LM, 3450LM, 4600LM), ensuring flexibility for various lighting needs. Complete with a bi-level sensor and emergency backup, it is a well-rounded, energy-efficient choice.

Key Features

Color temperature choices: 3500K, 4000K, 5000K
Lumen output adjustments: 2300LM, 3450LM, 4600LM
High efficiency: 115 LPW
Long-lasting performance: 50,000 hours
Dimmable: 0~10V Dimming
Emergency battery backup: Li-Ion Battery, over 90 minutes of operation
High Color Rendering Index (CRI) of ≥ 80
Rugged die-formed steel housing with white powder finish
Frosted polycarbonate lens for even light distribution
Comprehensive 5-Year Warranty
Certified for use in damp locations

Technical Specifications

Input Voltage: 120-277VAC 50/60Hz
Power Consumption: 20W/30W/40W
Power Efficiency: Power Factor >0.98
Fixture Dimensions: 48"(W) x 3 8/9"(H) x 3 3/4"(D)
Working Temperature Range: -22ºF to 104ºF

Applications

This versatile lighting solution is perfect for architectural projects and can be installed in a variety of settings such as industrial, commercial, and residential spaces. Its typical applications include corridors, stairwells, public areas, schools, hospitals, and utility rooms.

RESOURCE AND DOWNLOADS

Power & CCT Adjustable Linear Corner Corridor Spec Sheet

Details

Beam Angle Options:	H107.4 V107.2
Color Rendering Index (CRI):	80
Color Temperature (CCT):	3500K\|4000K\|5000K
Country of Origin:	China
Dimming Options:	0-10V
Finish Options:	White
IP Rating:	IP20
Item Height (Inch):	3.74
Item Length (Inch):	47.95
Item Weight (LBS):	8.2
Item Width (Inch):	3.74
L70 Expected Life (hrs):	50000
LED Type:	2835
Lens Material:	Opal
Listings and Ratings:	UL
Lumen Output:	2300lm\|3450lm\|4600lm
Manufacturer's Warranty:	5 YEARS
Operating Temperature:	-22°F to 104°F
Power Factor:	>0.92
Primary Material:	Steel
Special Features:	Power Selectable\|Color Temperature Selectable
THD:	<19%
Total Input Watts:	20W\|30W\|40W
Voltage:	120-277V
